Flip-Top Manhole Safety Standards

Flip-Top Manhole Safety Standards: A Comprehensive Guide

Flip-top manholes are essential components of modern infrastructure, providing convenient access to underground utilities such as electrical systems, telecommunications networks, drainage systems, and water supply lines. While these manholes improve efficiency in maintenance and inspections, their design, construction, and use must adhere to strict safety standards to prevent accidents, ensure durability, and optimize performance. This guide outlines the critical safety standards for flip-top manholes, covering design specifications, material requirements, installation procedures, and maintenance protocols.

---

1. Structural Integrity and Load-Bearing Capacity

1.1 Material Strength and Durability

Flip-top manholes must be constructed using high-strength materials capable of withstanding heavy loads and harsh environmental conditions. Common materials used include:

• Ductile Iron:Offers high tensile strength and corrosion resistance, making it ideal for areas with heavy traffic.

• Reinforced Concrete:Provides excellent compressive strength and durability, commonly used for underground infrastructure.

• Stainless Steel or Galvanized Steel:Used for hinges, locking mechanisms, and covers to prevent rust and wear.

1.2 Load Classifications

Manholes must be designed to support the expected load requirements based on their location. The European EN 124 standard and the American AASHTO M306 standard classify manholes based on their load-bearing capacity:

• Class A15 (Pedestrian Areas):For locations with minimal weight exposure.

• Class B125 (Light Traffic Areas):Suitable for sidewalks and residential zones.

• Class C250 (Urban Roads and Parking Lots):Designed for moderate vehicle loads.

• Class D400 (High-Traffic Roads):Required for main roads and highways.

• Class E600 & F900 (Industrial and Airport Zones):Used in areas exposed to extremely heavy loads.

Ensuringthat flip-top manholes comply with the appropriate load classification prevents structural failures and enhances safety.

---

2. Lid Safety Mechanisms and Stability

2.1 Hinged Lid Design

A hinged, flip-top mechanism should be securely attached to the manhole frame to prevent accidental dislodgment. Safety features must include:

• Shock-Absorbing Hinges:Prevents sudden closing, reducing injury risks.

• Counterbalance Mechanisms:Assists in easy opening and closing, minimizing manual effort.

• Anti-Theft Locking Systems:Prevents unauthorized access and vandalism.

2.2 Slip-Resistant Surfaces

The surface of the manhole lid should be treated with anon-slip textureto reduce the risk of slipping, particularly in wet or icy conditions. Textured designs or anti-slip coatings can significantly improve safety for pedestrians and workers.

2.3 Secure Closure and Locking Mechanisms

A flip-top manhole cover must remain securely closed when not in useto prevent accidents. Locking systems should include:

• Bolted Latches or Padlocks:To prevent unauthorized entry.

• Automatic Locking Systems:Ensures the lid stays in place after closing.

• Compression Seals:Reduces vibration-related loosening and water ingress.

---

3. Installation Safety Standards

3.1 Proper Placement and Alignment

Improper installation can lead to hazards such as unstable lids or misaligned frames. Key safety measures during installation include:

• Ensuringthe manhole is level with the surrounding surface to prevent tripping hazards.

• Using high-strength mortar or epoxy to secure the manhole frame in place.

• Aligning the hinge mechanism for smooth operation.

3.2 Adequate Drainage Around the Manhole

Water accumulation around manholes can cause safety risks such as hydroplaning for vehicles and slip hazards for pedestrians. Proper drainage design should include:

• Graded Surfaces:Ensures water flows away from the manhole.

• Sealed Joints:Prevents water leakage into underground utility systems.

• Perforated Drainage Layers:Installed beneath the manhole to facilitate water absorption.

---

4. Worker Safety During Maintenance and Inspection

4.1 Personal Protective Equipment (PPE)

Workers accessing flip-top manholes must wearmandatory safety gear, including:

• Hard Hats:Protects against falling objects.

• High-Visibility Vests:Ensures visibility in high-traffic areas.

• Steel-Toe Boots:Prevents foot injuries.

• Gloves and Safety Glasses:Shields hands and eyes from debris.

• Gas Detectors:Detects toxic gases in underground spaces.

4.2 Proper Lifting Techniques

Opening and closing flip-top manhole covers require proper techniques to prevent injuries:

• Using lifting handles or levers to minimize strain.

• Applying mechanical lifting tools for heavy lids.

• Keeping hands clear of pinch points when closing the cover.

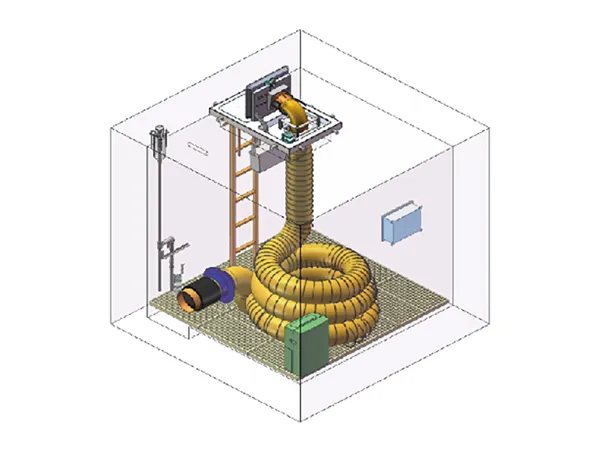

4.3 Confined Space Safety Protocols

If a worker needs to enter a flip-top manhole for underground maintenance, the following safety measures should be implemented:

• Ventilation Equipment:Prevents oxygen depletion and gas buildup.

• Buddy System:A second worker should always be present in case of emergencies.

• Rescue Equipment:Harnesses and retrieval systems should be in place.

---

5. Traffic and Pedestrian Safety Measures

5.1 Temporary Barriers and Warning Signs

During manhole maintenance, barriers and warning signs must be used to prevent pedestrian and vehicle accidents:

• Cones and Barricades:Clearly mark the work zone.

• Reflective Signage:Alerts drivers and pedestrians to ongoing work.

• Flashing Warning Lights:Used in low-visibility conditions.

5.2 Emergency Escape Route Planning

In high-risk locations, anemergency escape routeshould be established to allow workers to evacuate quickly in case of an accident or gas leak.

---

6. Environmental and Corrosion Protection Standards

6.1 Corrosion-Resistant Coatings

To extend the lifespan of flip-top manholes, protective coatings should be applied:

• Epoxy Coatings:Prevents rust and chemical damage.

• Galvanization:Provides an extra layer of corrosion resistance.

• Concrete Sealants:Reduces moisture infiltration.

6.2 Waterproof and Gas-Tight Seals

Flip-top manholes in sewer or gas utility networks must haveairtight gasketsto prevent leaks of hazardous gases such as methane or hydrogen sulfide.

6.3 Fire-Resistant Materials

In areas with high fire risks, manholes should be constructed withfire-resistant materialssuch as:

• Refractory Concrete:Withstands extreme heat.

• Ceramic Insulation Layers:Provides added fire protection.

---

7. Regular Inspection and Preventive Maintenance

7.1 Scheduled Inspections

Flip-top manholes must undergoroutine inspectionsto identify potential hazards or structural weaknesses. Inspection frequency depends on:

• High-Traffic Areas:Inspected every 3-6 months.

• Moderate-Traffic Areas:Inspected every 6-12 months.

• Low-Traffic Areas:Inspected annually.

7.2 Common Maintenance Procedures

• Lubricating Hinges:Ensures smooth lid movement.

• Replacing Worn Seals:Prevents leaks and corrosion.

• Cleaning Drainage Systems:Avoids water accumulation.

---

8. Conclusion

Flip-top manholes provide essential access to underground infrastructure, but they must be designed, installed, and maintained according to strict safety standards. Key safety measures include:

• Ensuringload-bearing capacitymeets location-specific needs.

• Incorporatingsecure locking mechanisms and anti-slip surfacesto prevent accidents.

• Followingproper installation and maintenance proceduresto enhance longevity.

• Implementingworker safety protocolsfor confined space entry and lifting.

• Adoptingenvironmental protection measuresto prevent corrosion and leakage.

By adhering to these safety standards, cities and utility providers can ensure that flip-top manholes remain durable, secure, and hazard-free for both workers and the public.

Key Design Considerations for Flip-Cover Utility Wells

Key Design Considerations for Flip-Cover Utility Wells

Introduction

Flip-cover utility wells are essential infrastructure elements used in various industries, including water management, telecommunications, and electrical distribution. Their primary function is to provide easy access to underground systems while ensuring safety, durability, and efficiency. This article explores the crucial design considerations for flip-cover utility wells, focusing on material selection, structural integrity, safety features, and compliance with industry standards.

1. Material Selection

Choosing the right materials for a flip-cover utility well is crucial to ensure longevity and reliability. The most commonly used materials include:

a. Cast Iron

• High durability and strength

• Resistant to heavy loads and traffic

• Corrosion-resistant when properly coated

b. Reinforced Concrete

• Ideal for heavy-duty applications

• Long lifespan with minimal maintenance

• Resistant to environmental factors such as temperature fluctuations and moisture

c. Composite Materials

• Lightweight yet strong

• Corrosion-resistant and non-conductive

• Suitable for areas with limited load requirements

The choice of material depends on factors such as load-bearing capacity, environmental exposure, and budget constraints.

2. Structural Integrity and Load Capacity

The structural design of a flip-cover utility well must ensure stability under different loading conditions. The following aspects must be considered:

a. Load Rating

Utility wells are categorized based on their load-bearing capacity. Standards such as AASHTO (American Association of State Highway and Transportation Officials) provide classifications, including:

• Light-duty (for pedestrian areas)

• Medium-duty (for sidewalks and light traffic zones)

• Heavy-duty (for roadways and industrial areas)

b. Reinforcement and Support

• Using steel reinforcement in concrete wells enhances durability.

• Ribbed or reinforced covers prevent deformation under heavy loads.

c. Water Drainage and Sealing

• Proper drainage prevents water accumulation and reduces structural deterioration.

• Sealing mechanisms, such as gaskets or locking systems, enhance waterproofing.

3. Safety Features

Ensuring safety is a top priority in the design of flip-cover utility wells. Key safety features include:

a. Anti-Slip Surfaces

• Textured surfaces reduce the risk of slipping, especially in wet conditions.

b. Locking Mechanisms

• Prevent unauthorized access to sensitive underground utilities.

• Reduce the risk of accidental openings, which can cause injuries or damage.

c. Hinged vs. Removable Covers

• Hinged covers prevent misplacement and unauthorized removal.

• They also facilitate easier access without requiring full removal.

d. Load-Bearing Safety Margins

• Ensuring the well can handle loads beyond its expected use provides an added layer of security.

4. Ease of Access and Maintenance

Flip-cover utility wells should be designed for convenient access and maintenance to minimize downtime and operational costs.

a. Ergonomic Handling

• Covers should be lightweight or equipped with lifting handles for easy maneuverability.

• Gas struts or spring-assisted hinges can help in effortless opening and closing.

b. Clear Labeling

• Utility wells should have clear identification markings to indicate their purpose and contents.

• Labels should be resistant to weather and wear.

c. Modular Design

• A modular approach allows for easier replacements and upgrades without requiring extensive reconstruction.

5. Compliance with Industry Standards

Adhering to regulatory standards ensures safety, reliability, and compatibility. Some essential standards include:

a. ISO Standards

• ISO 9001 for quality management systems

• ISO 14001 for environmental impact considerations

b. ASTM (American Society for Testing and Materials)

• ASTM A48 for gray iron castings

• ASTM C857 for reinforced concrete vault structures

c. ADA (Americans with Disabilities Act)

• Ensuring covers are flush with the surrounding surface to prevent tripping hazards.

d. Local and Municipal Regulations

• Compliance with local construction and safety codes is essential to avoid legal issues and ensure public safety.

6. Environmental Considerations

Sustainable design practices help reduce the environmental impact of flip-cover utility wells.

a. Recycled Materials

• Using recycled cast iron or composite materials contributes to sustainability efforts.

b. Stormwater Management

• Designing wells with integrated drainage systems prevents water stagnation and protects surrounding infrastructure.

c. Energy Efficiency in Manufacturing

• Choosing manufacturers that use energy-efficient production methods reduces the carbon footprint.

7. Innovative Design Trends

Recent advancements in utility well design are improving functionality and efficiency. Emerging trends include:

a. Smart Utility Wells

• Integration of sensors for remote monitoring of underground utilities.

• RFID tags for easy identification and asset tracking.

b. Self-Cleaning Covers

• Special coatings that repel dirt and debris, reducing maintenance requirements.

c. Modular and Expandable Designs

• Allowing for future upgrades without major modifications.

Conclusion

Designing flip-cover utility wells requires careful consideration of material selection, structural integrity, safety features, accessibility, compliance, environmental impact, and emerging innovations. By prioritizing these factors, engineers and designers can ensure the development of durable, safe, and efficient utility wells that meet industry standards and provide long-term reliability. Implementing best practices in design and construction contributes to the overall effectiveness of underground infrastructure, enhancing safety and accessibility for various applications.
